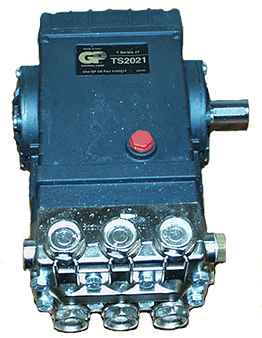

General Pump TS2021 Bare Pump

FEATURES:

• The preferred pump frame in the cleaning industry
• Forged brass manifold with an exclusive lifetime warranty
• Large capacity, die cast, anodized aluminum oil bath crankcase
• Over sized connecting rods for maximum life
• Heavy duty tapered roller bearing
• Solid ceramic plungers with continuously lubricating packings
• Unitized stainless steel inlet and discharge valves
• Available in left handed "L" version

SPECIFICATIONS

• Triplex Plunger Pump
• Maximum Volume: 4.5/5.6 GPM
• Maximum Discharge Pressure: 3000/1700 PSI
• Maximum Inlet Pressure: 125 PSI
• Maximum Pump Speed: 1125/1450 RPM
• Minimum Horsepower Requirements: 11.5 bhp (17.3 hp for gas engines)
• Bore: .787" (20mm)
• Stroke: .630" (16mm)
• Crankcase Capacity: 40.6 oz. Non-detergent SAE 30W oil
• Maximum Fluid Temperature: 165 degrees F.
• Inlet Port Thread: 1/2" FPT
• Discharge Port Thread: 3/8" FPT
• Shaft Diameter: .945" (24mm)
• Dimensions: 12.2" x 9.2" x 6.9"
