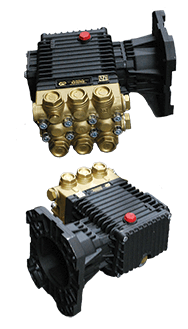

General Pump EZ4040G Direct Drive Pump

General Pump EZ4040G Direct Drive Pump

General Pump EZ4040G Direct Drive Pump

Regular price $429.99
Regular price Sale price $429.99
Sale Sold out
Shipping calculated at checkout.

General Pump EZ4040G



FEATURES:

  • Innovative one piece plunger design
  • 5% reduction in crankcase load compared to standard 3000 psi 15mm pumps
  • Superior plunger performance against thermal shock and cavitation due to new, unique bonding process
  • Standard SAE J609 gasoline mounting flange for up to 16hp engines
  • Forged brass manifold with a 3:1 hydrostatic rating
  • Die-cast, anodized aluminum, oil bath crankcase
  • Premium roller bearing
  • Unitized stainless steel inlet and discharge valves

SPECIFICATIONS:

  • Maximum Volume: 4.0 GPM
  • Maximum Discharge Pressure: 4000 PSI
  • Maximum Pump Speed: 3400 RPM
  • Bore: 13mm
  • Stroke: 13mm
  • Crankcase Oil Capacity: 14 oz
  • Maximum Fluid Temperature: 165 F
  • Inlet Port Thread: 1/2" FPT
  • Discharge Port Thread: 3/8" FPT
  • Hollow Shaft I.D: 1"
  • Weight: 20 lbs
  • Dimensions: 8.8"x9.7"x6.5"
