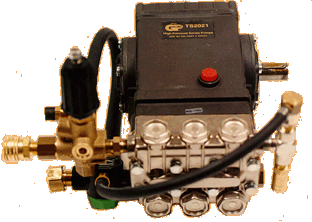

General Pump TS2021 Pump made ready to use
General Pump TS2021 PMR
Easily replace your old pump with a pump made ready. Simply remove your old pump and replace with this new pump. This pump made ready consists of the pump, a VRT3-310EZ adjustable pressure actuated unloader with a built-in easy start valve, a thermal relief valve to help prevent overheating, along with an inlet filter. All fittings are quick connected.
- Triplex Plunger Pump
- Maximum Volume: 4.5/5.6 GPM'
- Maximum Discharge Pressure: 3000/1700 PSI
- Maximum Inlet Pressure: 125 PSI
- Maximum Pump Speed: 1125/1450 RPM
- Minimum Horsepower Requirements: 11.5 bhp (17.3 hp for gas engines)
- Bore: .787" (20mm)
- Stroke: .630" (16mm)
- Crankcase Capacity: 40.6 oz. Nondetergent SAE 30W oil
- Maximum Fluid Temperature: 165 degrees F.
- Inlet Port Thread: 1/2" FPT
- Discharge Port Thread: 3/8" FPT
- Shaft Diameter: .945" (24mm)
- Dimensions: 12.2" x 9.2" x 6.9"
- Weight: 32 lb.
